Professional Fleet Hardware
Every Frontera Fleet installation uses the Teltonika FMB140 GPS tracker with a Bluetooth OBD-II dongle and a Multi-Carrier SIM. We provide, configure, and install all hardware.
Teltonika FMB140
Advanced GPS tracker with built-in CAN bus data reading. Reads fuel level, engine RPM, vehicle speed, odometer, and accelerator position directly from the vehicle's CAN bus — no OBD dongle required for CAN data. Bluetooth 4.0 LE connects to the OBD-II dongle for full engine diagnostics including DTC fault codes.
- ✓ Built-in CAN bus chip — reads data from light vehicles, trucks, buses, and heavy machinery
- ✓ GPS, GLONASS, Galileo, BeiDou — 33 tracking channels, position accuracy < 2.5m
- ✓ Bluetooth 4.0 LE for OBD-II dongle, temperature sensors, and barcode scanners
- ✓ 128 MB internal flash — stores data when cellular signal drops, syncs when reconnected
- ✓ Internal backup battery — continues tracking briefly after power loss for tow/theft detection
- ✓ Crash detection, towing detection, jamming detection built in
Three Components Per Vehicle
Each vehicle gets a GPS tracker and a cellular SIM card — $87 per vehicle, one time. The OBDCheck BLE+ diagnostic dongle is available as an add-on for $45 per vehicle. All hardware is configured and installed by our team.
Teltonika FMB140
GPS tracker with built-in CAN bus reader, accelerometer, and 128 MB flash memory. Hardwired to vehicle power. Dimensions: 65 x 56.6 x 20.6 mm. Weight: 55g.

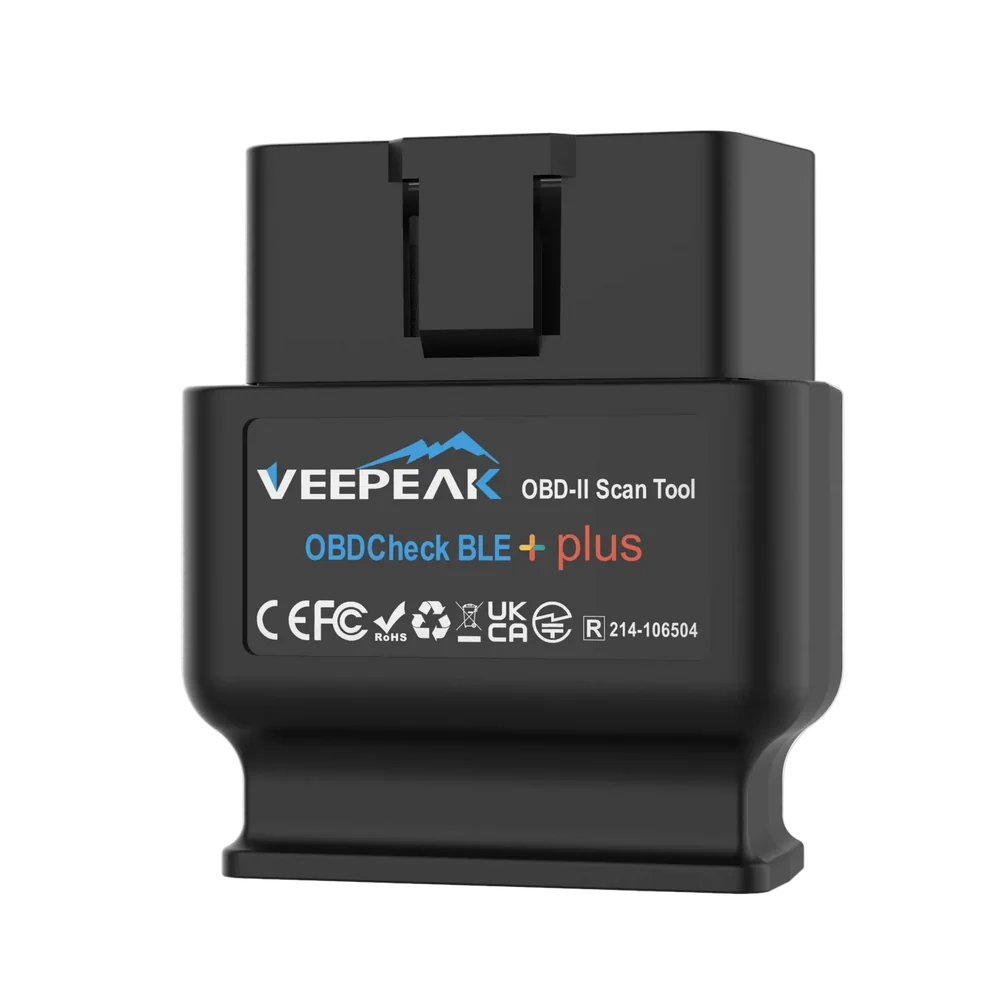

OBDCheck BLE+ Dongle
Plugs into the vehicle's OBD-II port under the dashboard. Connects to the FMB140 via Bluetooth LE (iOS) or Classic Bluetooth (Android/Windows). Reads full engine diagnostics: DTC fault codes, coolant temperature, engine load, throttle position, intake air temp, and more. Available as an add-on — $45 per vehicle.
Multi-Carrier SIM
Multi-carrier SIM that automatically connects to the strongest available cellular signal. Managed from your Frontera Fleet dashboard. Activates and deactivates per vehicle. Cellular connectivity is included in your monthly subscription — no separate data plan needed.
From Vehicle to Dashboard
1. FMB140 Reads Vehicle Data
The tracker reads CAN bus data directly (fuel, speed, RPM, odometer) and receives OBD-II diagnostics via Bluetooth from the dongle (DTC codes, coolant temp, engine load). Built-in accelerometer detects harsh braking, acceleration, and crashes.
2. Data Transmits Over Cellular
The Multi-Carrier SIM sends telemetry data to our servers over GPRS. If cellular signal drops, the 128 MB flash stores up to several days of data and syncs automatically when signal returns.
3. Server Processes in Real Time
Our TCP server receives the Teltonika Codec 8/8E binary data, parses it, and writes it to the database. Vehicle position, speed, and status update on the dashboard within seconds.
4. Dashboard and Apps Update Live
WebSocket connections push every update to the live map, mobile apps, and parent app in real time. No polling, no refresh. Alerts fire immediately via SMS, push notification, and email.
FMB140 Full Specs
Teltonika TM2500 module. Certified CE/RED, E-Mark, EAC, RoHS, REACH.
GNSS (Satellite Navigation)
| Satellite Systems | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS |
| Tracking Channels | 33 |
| Acquisition Channels | 99 |
| Tracking Sensitivity | -165 dBm |
| Position Accuracy | < 2.5 m CEP |
| Velocity Accuracy | < 0.1 m/s |
| Hot Start | < 1 second |
| Warm Start | < 25 seconds |
| Cold Start | < 35 seconds |
| Antenna | Internal High Gain |
Cellular
| Technology | GSM / GPRS |
| 2G Bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data Transfer | GPRS Multi-Slot Class 12 (up to 240 kbps) |
| Data Support | SMS (text/data) |
| SIM | Micro-SIM or eSIM |
| Antenna | Internal High Gain |
Power
| Input Voltage | 10 - 30 V DC (with overvoltage protection) |
| Backup Battery | 170 mAh Li-Ion, 3.7 V (0.63 Wh) |
| Ultra Deep Sleep | < 6 mA @ 12V |
| Deep Sleep | < 8 mA @ 12V |
| Online Deep Sleep | < 11 mA @ 12V |
| GPS Sleep | < 20 mA @ 12V |
| Nominal (no load) | < 35 mA @ 12V |
| Peak (full load) | < 1.5 A @ 12V |
Physical
| Dimensions | 65 x 56.6 x 20.6 mm |
| Weight | 55 g |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
| Operating Humidity | 5% - 95% (non-condensing) |
| Ingress Protection | IP41 |
| Memory | 128 MB internal flash |
| USB | 2.0 Micro-USB |
| LED Indicators | 3 status LEDs |
Interfaces
| Digital Inputs | 3 |
| Negative Inputs | 1 (Digital Input 2) |
| Impulse Inputs | 2 (Digital Input 1, Digital Input 2) |
| Digital Outputs | 2 |
| Analog Inputs | 2 |
| CAN Interfaces | 2 |
| 1-Wire | 1 (data) |
| Bluetooth | 4.0 + LE |
Bluetooth Peripherals
| Supported Devices | OBD-II dongle, temperature/humidity sensor, headset, barcode scanner, universal BLE sensors |
OBDCheck BLE+ Specifications
Bluetooth OBD-II dongle available as an add-on — $45 per vehicle. Plugs into the OBD-II port and pairs with the FMB140 for full engine diagnostics.
OBDCheck BLE+
Dual-mode Bluetooth dongle with ELM 327 v2.2 chipset. Bluetooth LE for iOS, Classic Bluetooth for Android and Windows. Compatible with all OBD-II vehicles sold in the US since 1996.
- ✓ Bluetooth LE (iOS 4.0+) and Classic Bluetooth (Android/Windows)
- ✓ ELM 327 v2.2 hardware — reads all standard OBD-II PIDs
- ✓ Operating voltage: 9V–16V | Max current: 45mA
- ✓ Operating temperature: -40°F to 185°F (-40°C to 85°C)
- ✓ Dimensions: 1.97″L × 1.61″W × 0.87″H | Weight: 2.12 oz
Compatible OBD-II Protocols
| SAE J1850 PWM | Supported |
| SAE J1850 VPW | Supported |
| ISO 9141-2 | Supported |
| ISO 15765-4 CAN | Supported |
| ISO 14230-4 KWP 2000 | Supported |
| MS-CAN / SW-CAN | Not supported |
Vehicle Compatibility
| USA | Cars and light trucks since 1996 |
| Canada | Since 1998 |
| Mexico | Since 2006 |
| European Union | Gas since 2001, Diesel since 2004 |
| Australia | Gas since 2006, Diesel since 2007 |
| Note | Electric vehicles (EVs) are not supported |
Direct Vehicle Data Without OBD
The FMB140's built-in CAN bus chip reads these values directly from the vehicle's CAN network — no OBD dongle needed for this data.
Fuel Level (Dashboard)
Reads the fuel gauge value directly from CAN bus. Same reading the driver sees on the dashboard.
Total Fuel Consumption
Cumulative fuel consumed since vehicle manufacture. Used to calculate consumption rates and efficiency trends.
Vehicle Speed (Wheel)
Speed from the wheel speed sensors via CAN. More accurate than GPS speed at low velocities and in tunnels.
Vehicle Driven Distance
Odometer reading from the vehicle's CAN bus. Tracks total distance and distance per trip for maintenance scheduling.
Engine Speed (RPM)
Live engine RPM from CAN bus. Used for ignition detection, idle time calculation, and engine load analysis.
Accelerator Pedal Position
Throttle position as a percentage. Used in driver behavior analysis for harsh acceleration and efficiency scoring.
Full Engine Diagnostics via Bluetooth Dongle
The Bluetooth OBD-II dongle plugs into the vehicle's diagnostic port and connects wirelessly to the FMB140. This gives you full engine diagnostics on top of the CAN bus data.
DTC Fault Codes
Active, stored, and pending diagnostic trouble codes. P-codes, B-codes, C-codes, U-codes. Translated to plain English on the dashboard.
Coolant Temperature
Live engine coolant temperature. Triggers alerts when trending above the baseline for that engine type.
Engine Load
Percentage of engine capacity being used. High sustained load can indicate mechanical issues or driver behavior problems.
Throttle Position
Real-time throttle position from the engine control unit. Feeds into driver behavior scoring and fuel efficiency analysis.
Intake Air Temperature
Air temperature entering the engine. Anomalies can indicate air filter issues or sensor failure.
Battery Voltage
Vehicle battery voltage in real time. Low voltage alerts fire before the battery dies, not after.
Accelerometer & Software Features
The FMB140 includes a 3-axis accelerometer and firmware-level detection scenarios that work independently of OBD data.
Crash Detection
Accelerometer detects sudden deceleration events consistent with a collision. Triggers an immediate alert with GPS coordinates.
Towing Detection
Detects when a vehicle is being moved with the ignition off. Alerts fleet manager immediately with location.
Excessive Idling
Detects when a vehicle idles beyond a configurable threshold. Logs duration and calculates fuel waste.
Jamming Detection
Detects GPS signal jamming attempts. If someone tries to block the tracker, an alert fires immediately.
Unplug Detection
Alerts when the device is disconnected from vehicle power. The internal battery keeps the device alive long enough to send the alert.
Green Driving
Scores driving events in real time: harsh braking, harsh acceleration, harsh cornering. Feeds directly into the driver safety score.
Auto Geofence
Automatically creates a geofence around the vehicle's last known parked position. Alerts if the vehicle moves.
Over Speeding Detection
Configurable speed thresholds at the device level. Logs speeding events with location, duration, and max speed reached.
Ignition Detection Methods
The FMB140 supports four different ways to detect ignition state, configurable per vehicle:
- ✓ Digital Input 1 — hardwired to ignition line
- ✓ Accelerometer — detects movement and vibration patterns
- ✓ External Power Voltage — voltage threshold change when ignition turns on
- ✓ Engine RPM via OBD-II dongle — most accurate method for vehicles with OBD
Sleep Modes
Four configurable sleep modes to balance tracking frequency with battery and data usage:
GPS Sleep
GPS module sleeps between fixes. Wakes on schedule to acquire position. Under 20 mA at 12V.
Online Deep Sleep
GPS off, GPRS stays connected. Device wakes on movement or schedule. Under 11 mA at 12V.
Deep Sleep
GPS and GPRS off. Device wakes on movement or ignition. Under 8 mA at 12V.
Ultra Deep Sleep
Minimum power consumption. Device wakes only on movement. Under 6 mA at 12V.
Configuration & Updates
- ✓ FOTA (Firmware Over The Air) — remote firmware updates
- ✓ FOTA WEB — update via Teltonika's web platform
- ✓ Teltonika Configurator — configure via USB or Bluetooth
- ✓ SMS commands — configuration, output control, debug
- ✓ GPRS commands — remote configuration and control
- ✓ Time sync via GPS, NITZ, and NTP
Certifications
$87 Per Vehicle + $45 OBD Add-On
The FMB140 tracker and Multi-Carrier SIM — $87 per vehicle. Add the OBDCheck BLE+ dongle for $45 per vehicle for full engine diagnostics. We configure and install everything. The hardware is yours to keep.
